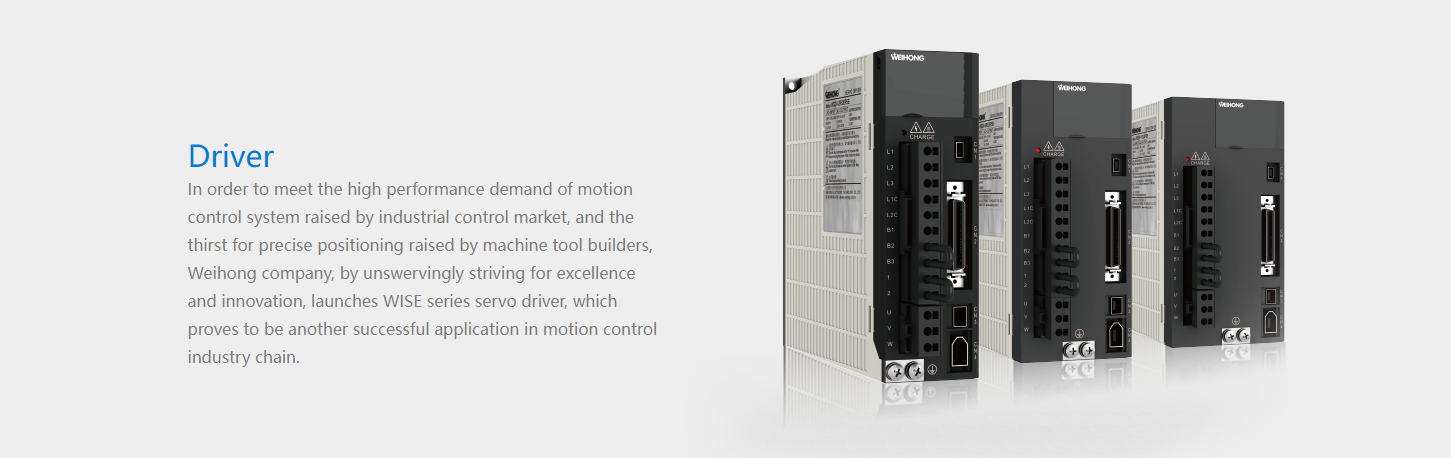

WISE-1000W
-
Main Power Supply
Single-phase/3-phase 220V～240V 50～60HZ -
Control Power Supply
Single-phase 220V～240V 50～60HZ -
Encoder Feedback
Absolute encoder, 7 wires serial, 17 bits (131072 resolution)
Incremental encoder, 5 wires serial, 20 bits (1048576 resolution)
ABZ-phase incremental encoder, 2500P/r (10000 resolution) -
Pulse & Direction Input Signal
2 groups of differential input signal (one for pulse, the other for direction) -
Pulse Output
ABZ-phase encoder pulse output through line driver -
Communication
Connected to PC (which has iMotion installed) via USB interface -
Control Mode
① Position control; ② Velocity control; ③ Torque control
